Sizing a central AC system in Mercer County starts with the house itself. 86 severe weather events were recorded in Mercer County, Illinois between 2015 and 2024. That rate of weather puts real but not exceptional demand on equipment, so a contractor cannot lean on climate alone to justify a particular unit size or system spec. What drives the sizing decision is the envelope of the home, its orientation, the ductwork condition, and whether any previous install left gaps in performance. A contractor who skips that assessment and quotes from square footage alone will leave the system running short or long, and either way the homeowner pays for it on every utility bill.
Ductwork laid out for equipment that has not been manufactured in generations shapes what a new central AC installation actually requires in Mercer County. Half the homes in Mercer County, Illinois were built in 1962 or earlier (2020-2024 ACS 5-year). That building history means the ducting in a large share of the county's homes was sized and routed for systems with different airflow requirements than what a contractor is putting in today. A new unit may be the simplest thing to select; what carries its output through the house is where the real assessment happens. A contractor will open, measure, and pressure-check before any equipment gets ordered.
What a Central AC Installation Puts in Your Home
The outdoor condenser unit sits on a concrete pad beside the house and holds the compressor and condenser coil, which together shed heat to the outside air. Inside the home, the air handler or furnace cabinet houses the evaporator coil, which is where the indoor air gives up its heat before the blower pushes the cooled air back through the house.
The refrigerant line set runs between the two units, carrying refrigerant through a pair of insulated copper lines that pass through the wall or floor. A thermostat mounts on an interior wall and acts as the control point, telling the system when to run and when to stop.

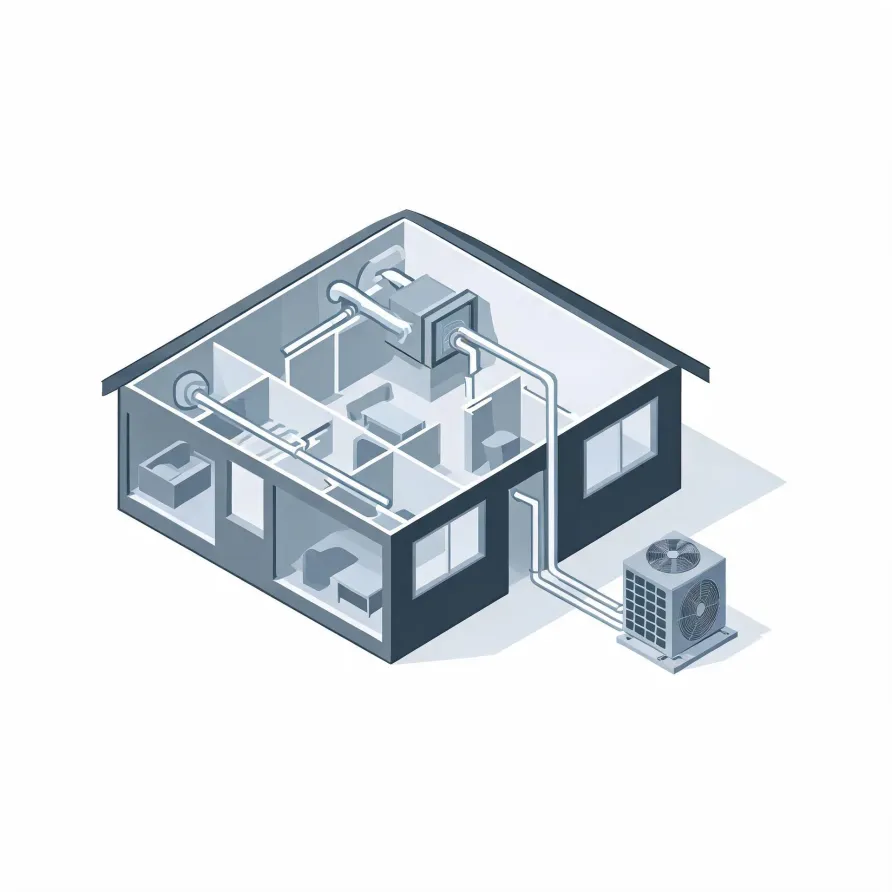

The drawing shows how these pieces relate in a typical installation, and a licensed contractor determines exactly what applies to your home's layout and existing equipment.
Get matched in Mercer CountyMercer County, by the numbers
86 severe weather events were recorded in Mercer County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Mercer County, Illinois were built in 1962 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesMercer County, Illinois holds 7,285 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 83.8% of the occupied homes in Mercer County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Governing Central AC Installation in Mercer County, Illinois9 sourced rules and standards
What the Installation Actually Looks Like
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing and Legal Requirements in Mercer County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Mercer County
Weather puts a load on cooling equipment, and that load is shaped by local conditions. What rolls through Mercer County determines how hard a central AC system has to work and how well it has to be sized to keep up.
86 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
