Sizing central AC for a home in Bond County starts with what the house asks of the system, not with worst-case assumptions borrowed from harder climates. 33 severe weather events were recorded in Bond County, Illinois between 2015 and 2024. At that rate, severe weather is an occasional pressure on equipment rather than a constant one, which means a contractor quoting an installation here builds around the home's square footage, duct layout, and insulation before reaching for weather as a variable. A system that is correctly sized and properly sealed for this area handles the load it will actually see.
Ductwork laid down for older equipment carries assumptions about airflow, routing, and static pressure that a modern central AC unit does not share. Half the homes in Bond County, Illinois were built in 1975 or earlier (2020-2024 ACS 5-year). A contractor installing a new system has to assess whether those ducts will move the air a current unit produces, or whether sections need to be resized, rerouted, or replaced before the new equipment can perform as rated. The electrical service gets the same look, since panel capacity and circuit runs from that period were not planned around what today's condensers draw. The house itself sets the scope before any equipment is priced.
What a Central AC System Includes

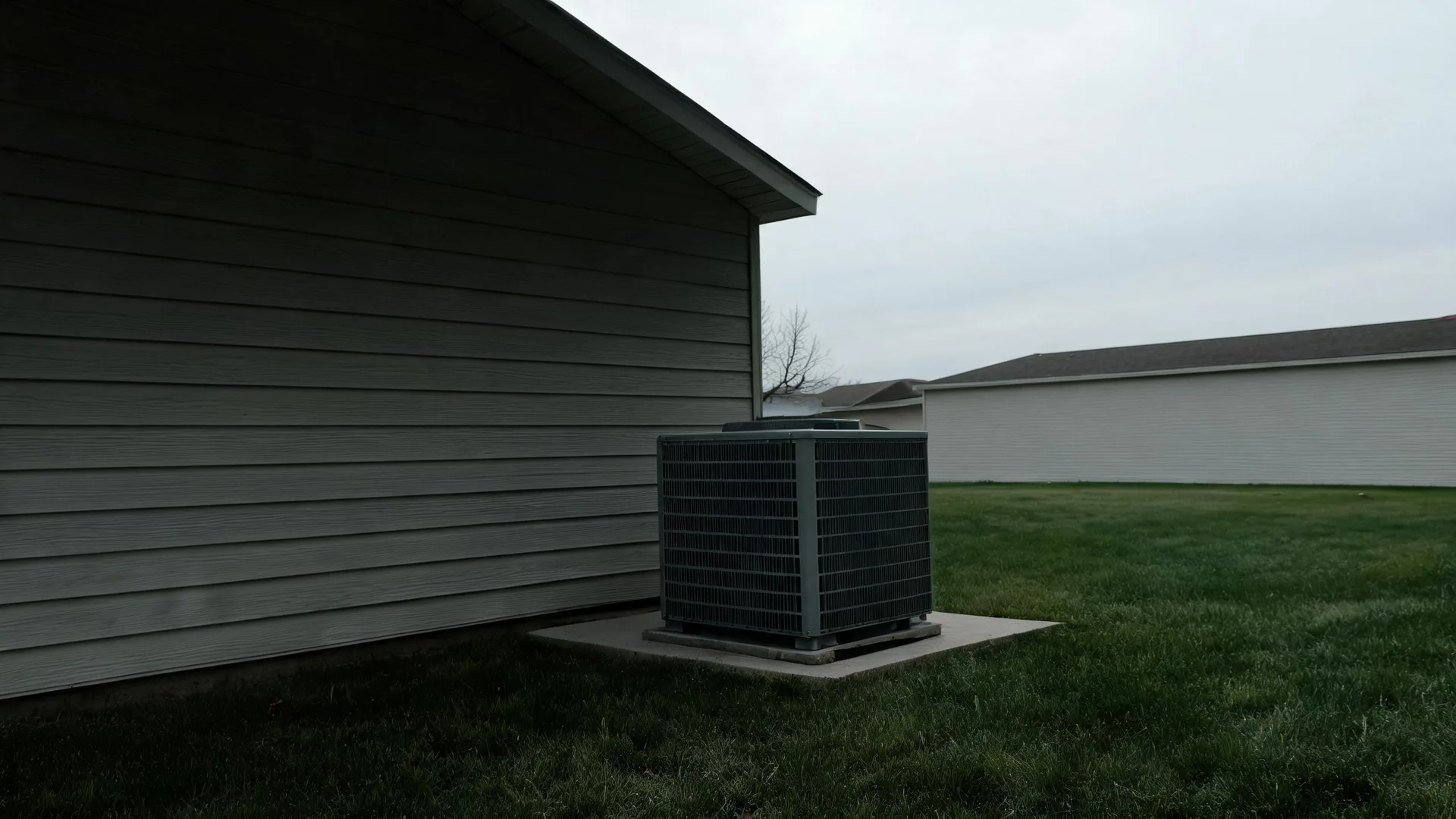

The outdoor condenser unit sits outside the house, usually along a side or rear wall, and holds the compressor and condenser coil. Inside, the air handler or furnace-mounted evaporator coil sits where conditioned air enters the duct system. Together, these are the two main pieces a contractor brings to the job.
A copper refrigerant line set runs between the outdoor and indoor units, and a condensate drain line carries moisture away from the evaporator coil to a floor drain or outside. A thermostat on an interior wall ties the whole system together, telling it when to run.
The drawing shows a typical layout, and a licensed contractor determines exactly what applies to this house.
Get matched in Bond CountyBond County, by the numbers
33 severe weather events were recorded in Bond County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Bond County, Illinois were built in 1975 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesBond County, Illinois holds 6,899 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 76.6% of the occupied homes in Bond County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesRules & Standards Behind Central AC Installation in Bond County, Illinois9 sourced rules and standards
What HVAC Installation Looks Like in Bond County
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing Rules for Bond County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Bond County
Outdoor conditions in Bond County put real demands on cooling equipment over time. How hard a system has to work, and how long it holds up, is a local question shaped by local weather.
33 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
