Sizing a central AC system for a house in Morgan County takes more than the square footage. 90 severe weather events were recorded in Morgan County, Illinois between 2015 and 2024. At that rate, severe weather is a real but not dominant variable in what a contractor has to account for when speccing equipment. The load it adds is genuine, and a contractor will factor it into duct sizing and unit capacity, but the age of the house, its insulation, and how the existing system was installed carry at least as much weight in the final quote.
Ductwork laid down for a furnace and radiator setup was sized and routed for a different job than cooling a house in an Illinois summer. Half the homes in Morgan County, Illinois were built in 1965 or earlier (2020-2024 ACS 5-year). That tells a contractor installing central AC here to treat the existing duct runs as an open question, not an assumption: whether they move enough air, whether the returns are placed where they need to be, and whether the electrical service the new unit draws from was sized for it. The answers come from what is in the house, not from the age printed on it.
What a Central AC Installation Puts in Your Home

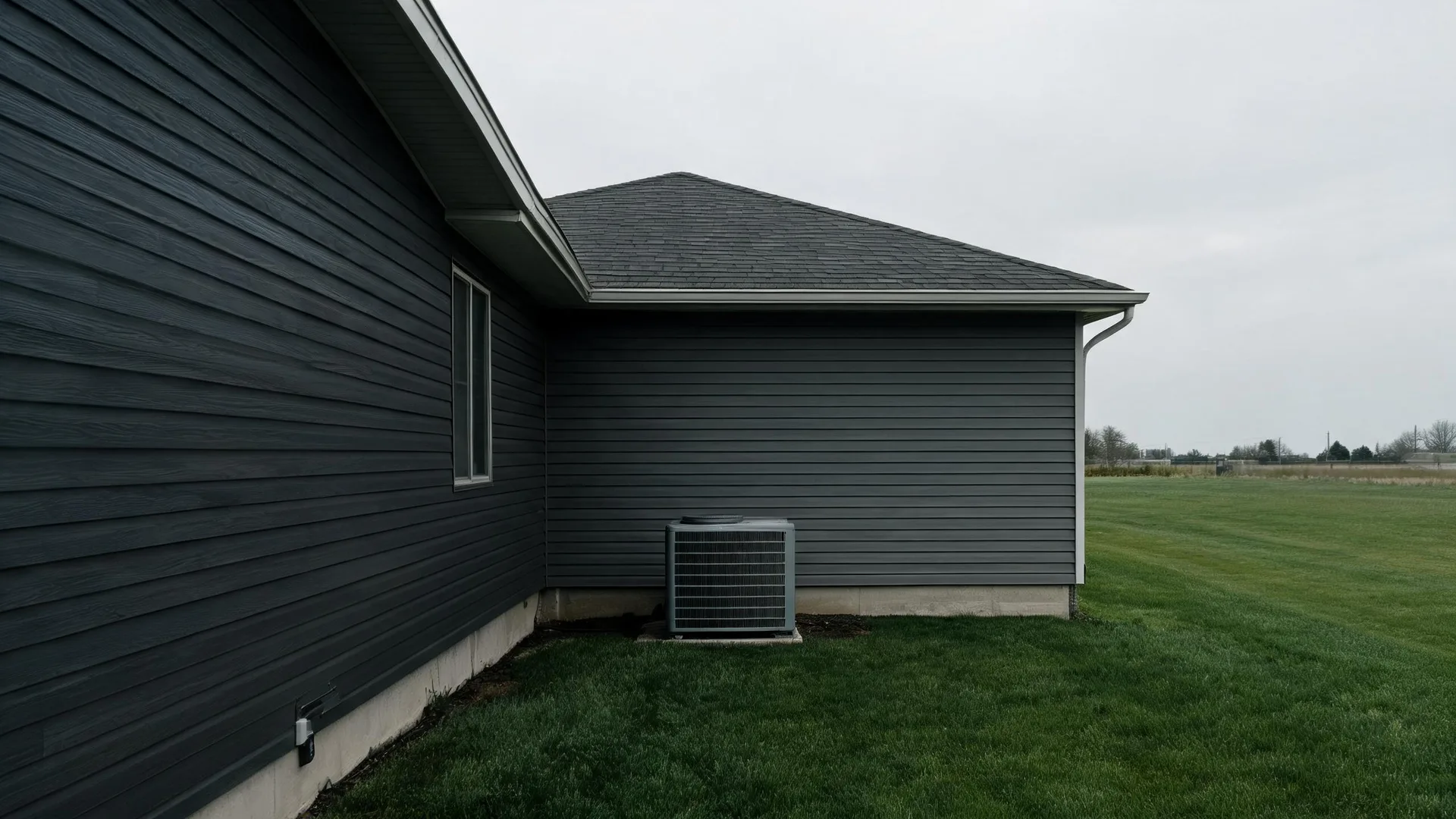

The outdoor condenser unit sits outside the house, usually on a concrete pad at ground level, and holds the compressor and condenser coil. Inside, the air handler or furnace-mounted evaporator coil sits where conditioned air enters the duct system. These are the two main pieces a contractor places during a new installation.
The refrigerant line set runs between the two units, connecting them through a small penetration in the wall. A thermostat goes on an interior wall and gives the homeowner control over the whole system. The condensate drain line runs from the indoor coil to a nearby drain to carry away moisture.
The drawing shows a typical layout, and a licensed contractor determines what the installation looks like in your specific home.
Get matched in Morgan CountyMorgan County by the Numbers
90 severe weather events were recorded in Morgan County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Morgan County, Illinois were built in 1965 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesMorgan County, Illinois holds 15,016 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 72.8% of the occupied homes in Morgan County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Governing Central AC Installation in Morgan County, Illinois9 sourced rules and standards
What the Installation Actually Looks Like
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
What Morgan County, Illinois Requires for This Work
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Morgan County
Weather extremes put a direct load on cooling equipment, and that load shapes what a system needs to handle over its working life. Central AC sized and installed for local conditions holds up better than one that was not.
90 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
