A contractor quoting central AC in Kane County has to size the system for what this area actually demands, not for a catalog average. 298 severe weather events were recorded in Kane County, Illinois between 2015 and 2024. At that rate, severe weather is a standing condition of operating here, not an occasional interruption, and a system that is undersized or poorly installed will feel that load in the first few seasons. Duct sealing, refrigerant charge, and equipment placement are all local questions, and a contractor who treats them as generic steps will leave the homeowner with a system working harder than it should from the start.
Ductwork sized and routed for the equipment this housing was built around shapes what a central AC installation costs and how long it takes. Half the homes in Kane County, Illinois were built in 1985 or earlier (2020-2024 ACS 5-year). A modern central AC unit moves more air on a different refrigerant cycle, and whether the existing duct runs can carry that load without leaking, restricting, or starving the new equipment is what a contractor measures before anything else gets priced. The electrical panel in houses of this vintage is a separate question: the draw a new unit requires sometimes fits what is there, and sometimes it does not. Both have to be confirmed in the house, not assumed from the permit date.
What a Central AC Installation Puts in Your Home

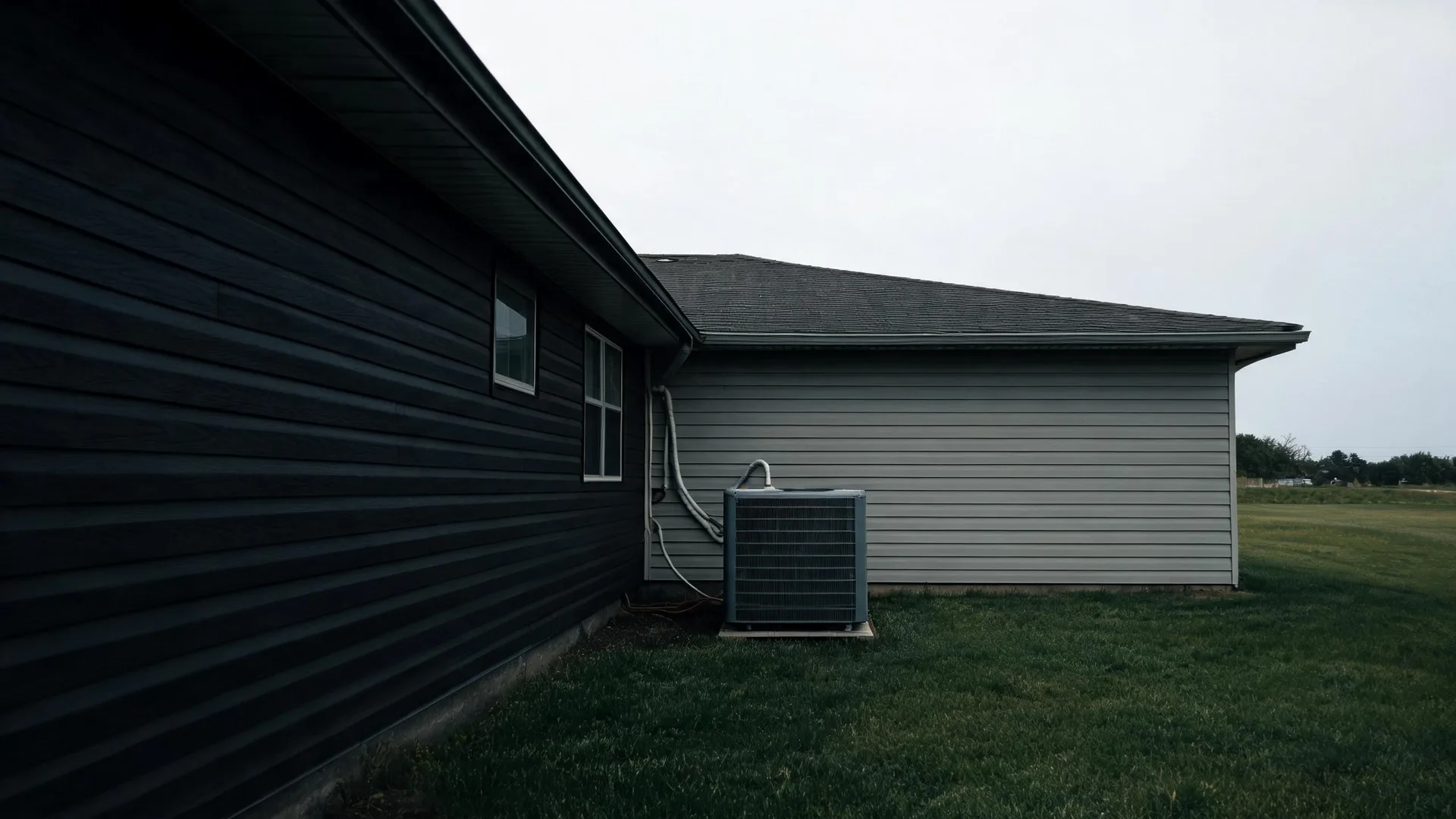

The outdoor condenser unit sits on a concrete pad beside the house and holds the compressor and condenser coil, the mechanical core of the system. Inside, the air handler or furnace-mounted evaporator coil lives in a utility space, basement, or closet and is the indoor half of the setup. These two pieces are what a contractor brings in and connects.
A refrigerant line set runs between the indoor and outdoor units through a small penetration in the wall, carrying the working fluid that ties the two halves together. A thermostat goes on an interior wall and gives the homeowner control over the whole system.

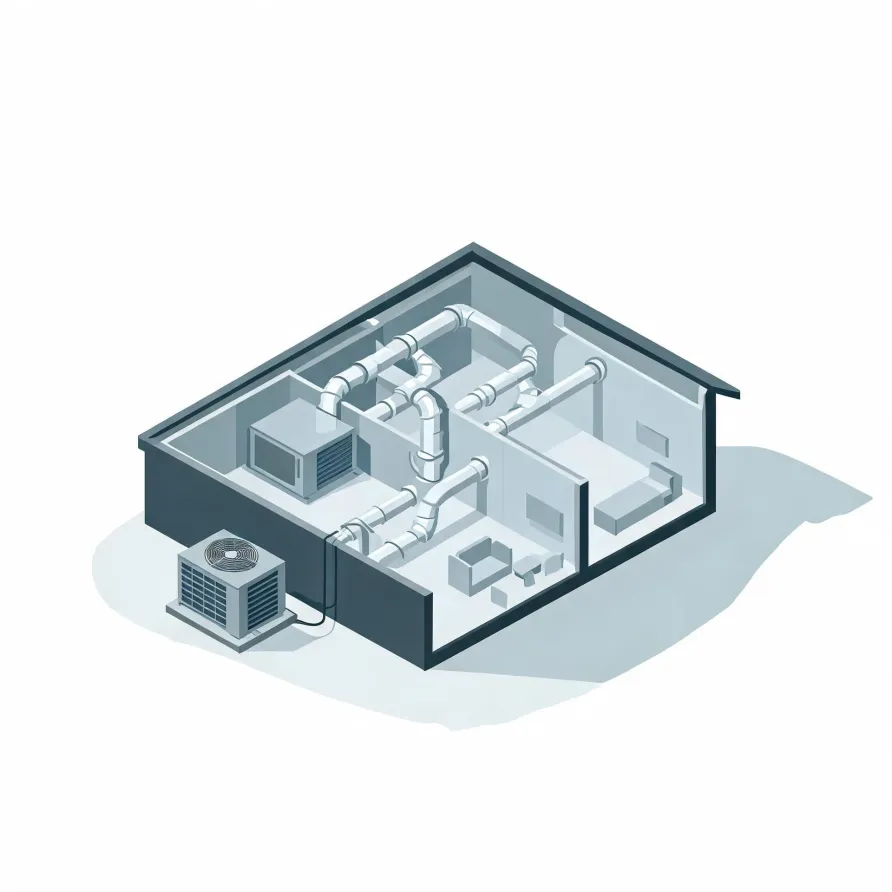

The drawing shows a typical layout, and a licensed contractor determines exactly what applies to your house.
Get matched in Kane CountyKane County, by the numbers
298 severe weather events were recorded in Kane County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Kane County, Illinois were built in 1985 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesKane County, Illinois holds 190,921 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 76.0% of the occupied homes in Kane County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Behind Central AC Installation in Kane County, Illinois9 sourced rules and standards
What the Installation Actually Looks Like
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing and Legal Requirements in Kane County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Kane County
The local climate puts real stress on cooling equipment, and that stress shapes what a properly sized and installed system needs to handle. How often Kane County sees severe weather is part of that picture.
298 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
