Sizing a central AC system for a house in Effingham County means the contractor has to account for what this area actually demands, not pull a number from a catalog. 86 severe weather events were recorded in Effingham County, Illinois between 2015 and 2024. At that rate, severe weather is a recurring part of the operating picture, but it falls short of being a constant. A contractor quoting an install here is pricing around sustained summer cooling load first, and then building in the mechanical headroom that a county with this kind of weather record warrants. Equipment selected without both considerations will either be underpowered for the real load or undersized against the conditions.
Ductwork laid down for an older furnace was sized for that furnace, and a new central AC system pulls air differently. Half the homes in Effingham County, Illinois were built in 1978 or earlier (2020-2024 ACS 5-year). What that means for installation is that a contractor has to assess what the existing trunk lines and returns will actually do under load from a modern unit before the equipment selection makes sense. If the duct system cannot carry the required airflow, the install scope widens before a single outdoor unit gets ordered.
What a Central AC System Includes
The outdoor condenser unit sits outside the house, usually on a concrete pad along an exterior wall, and holds the compressor and condenser coil. Inside, the air handler or furnace-mounted evaporator coil lives in a utility space, basement, or closet and is the indoor half of the system. Together these two units are what a new central AC installation puts in place.
The refrigerant line set runs between the two units, carrying refrigerant through copper tubing that gets routed through the wall or floor. A thermostat mounts on an interior wall and gives the homeowner control over when the system runs and what temperature it holds.

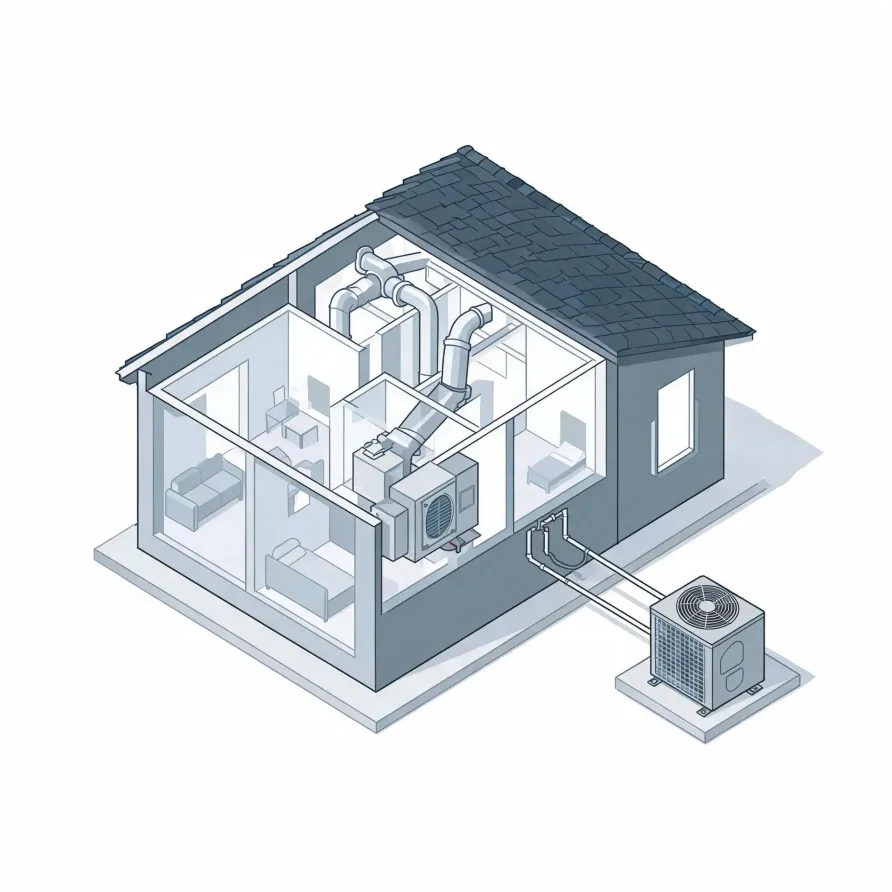

The drawing shows a typical layout, and a licensed contractor determines exactly what applies to this house.
Get matched in Effingham CountyEffingham County, by the numbers
86 severe weather events were recorded in Effingham County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Effingham County, Illinois were built in 1978 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesEffingham County, Illinois holds 15,413 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 78.2% of the occupied homes in Effingham County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Governing Central AC Installation in Effingham County, Illinois9 sourced rules and standards
What the Installation Actually Looks Like
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing Rules for Effingham County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Effingham County
Local weather places real demands on cooling equipment, and those demands vary by where you are. A system sized and installed for Effingham County conditions handles the actual load your climate puts on it, which is why local weather history matters when you're making installation decisions.
86 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
