Sizing a central AC system for a house in Clay County starts with what the structure actually demands, not with a worst-case assumption about the climate. 85 severe weather events were recorded in Clay County, Illinois between 2015 and 2024. At that rate, severe weather is a real but occasional presence, not the defining load a system runs against year after year. A contractor quoting an installation here sets capacity by the home's square footage, insulation, window exposure, and duct layout. A unit undersized because the estimator skipped that work will struggle every July regardless of what the sky does. That is the gap a good installation closes.
Ductwork sized for the equipment of an earlier generation is what a contractor meets in a large share of Clay County houses, and whether those runs can carry a modern central AC system is the first question the job turns on. Half the homes in Clay County, Illinois were built in 1972 or earlier (2020-2024 ACS 5-year). That age of construction used load assumptions and duct sizing practices that do not simply transfer to today's equipment, which means a contractor quoting central AC here prices the existing duct system before anything else. The electrical service follows the same logic. What is already in the house sets the real scope.
What Central AC Looks Like Before Installation

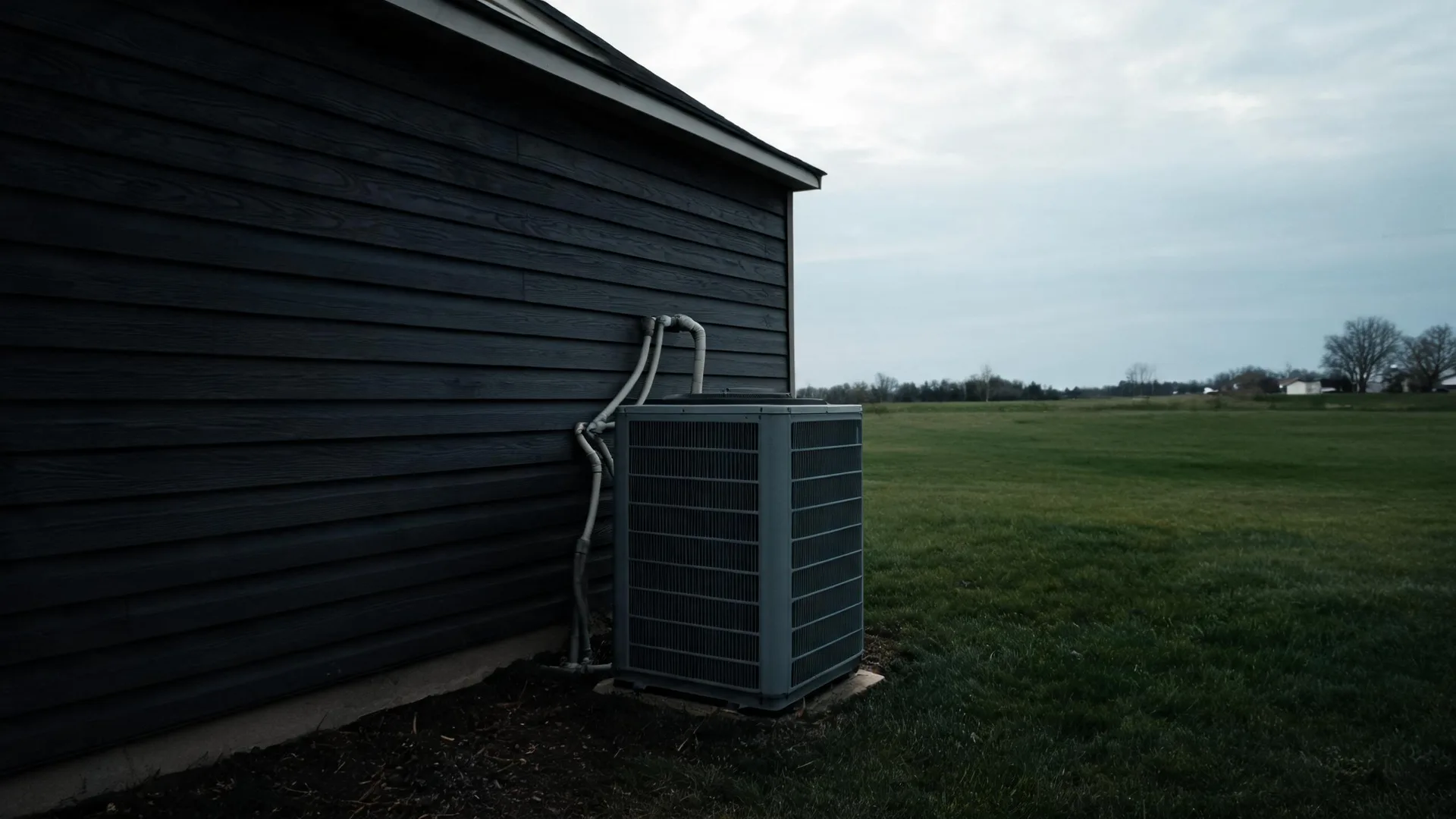

The outdoor condenser unit sits on a concrete pad beside the house and holds the compressor and condenser coil. Inside, the air handler or furnace cabinet mounts in a utility space, basement, or closet and carries the evaporator coil that pairs with it. Together these two cabinets form the core of the system.
A copper refrigerant line set runs between the two cabinets, connecting the outdoor and indoor sides through an exterior wall. A thermostat mounts on an interior wall and gives the homeowner control over the whole system. The condensate drain line runs from the indoor cabinet to a floor drain or exterior exit point.

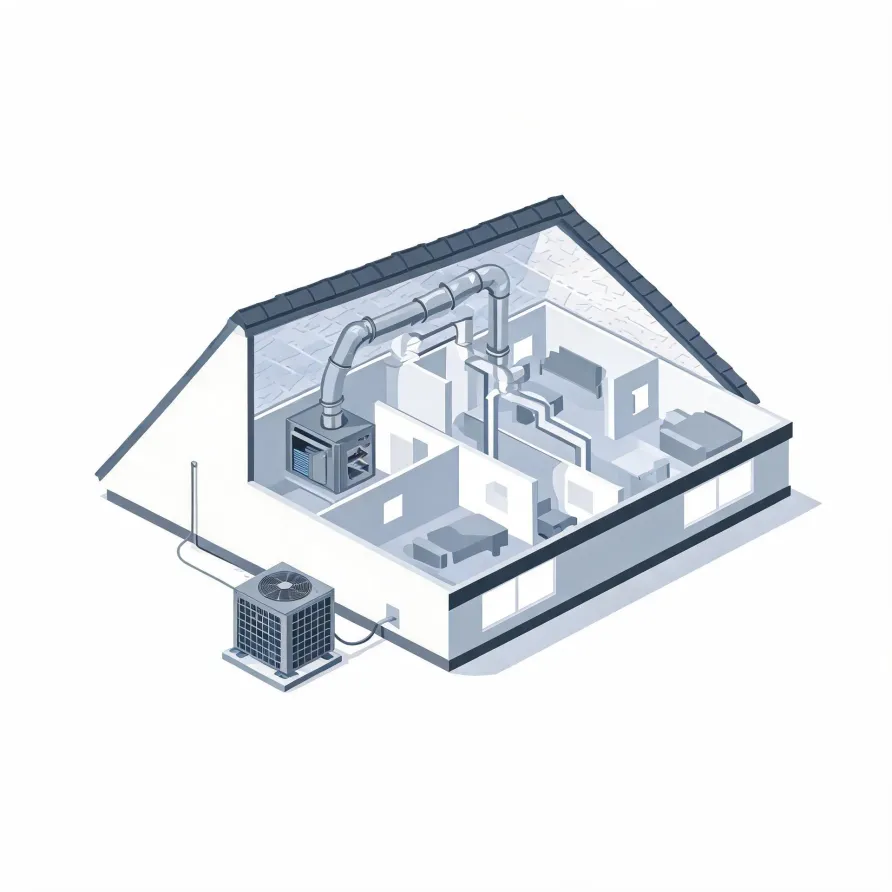

The drawing shows a typical layout, and a licensed contractor determines what applies to your specific house.
Get matched in Clay CountyClay County by the Numbers
85 severe weather events were recorded in Clay County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Clay County, Illinois were built in 1972 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesClay County, Illinois holds 6,165 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 79.3% of the occupied homes in Clay County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Behind Central AC Installation in Clay County, Illinois9 sourced rules and standards
What the installation work looks like in Clay County
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing and Legal Requirements in Clay County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Clay County
Weather puts a load on cooling equipment, and that load is shaped by local conditions. How hard a system has to work, and how reliably it has to perform, is a Clay County question as much as a mechanical one.
85 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
