A contractor sizing a central AC system in Wayne County has to account for what the local climate actually asks of the equipment, and that is a local question, not a catalog one. 85 severe weather events were recorded in Wayne County, Illinois between 2015 and 2024. At that rate, severe weather is a genuine presence in the operating life of a system here, but it does not hit hard enough to make weather load the primary variable in an install. Proper sizing and the quality of the installation determine how well the system handles whatever comes, because a poorly sized or loosely installed unit will struggle regardless of how the seasons run.
Ductwork sized and routed for equipment that no longer exists is what a contractor runs into when quoting a central AC installation across a wide share of Wayne County's housing stock. Half the homes in Wayne County, Illinois were built in 1974 or earlier (2020-2024 ACS 5-year). A new unit drops into a house whose air distribution was laid out for something else entirely, and whether those runs can carry the airflow a modern system delivers is the question that shapes the whole job. The electrical is the same story. A panel installed when that house was new may not supply what a current condenser draws without an upgrade.
What a Central AC System Looks Like Before Installation

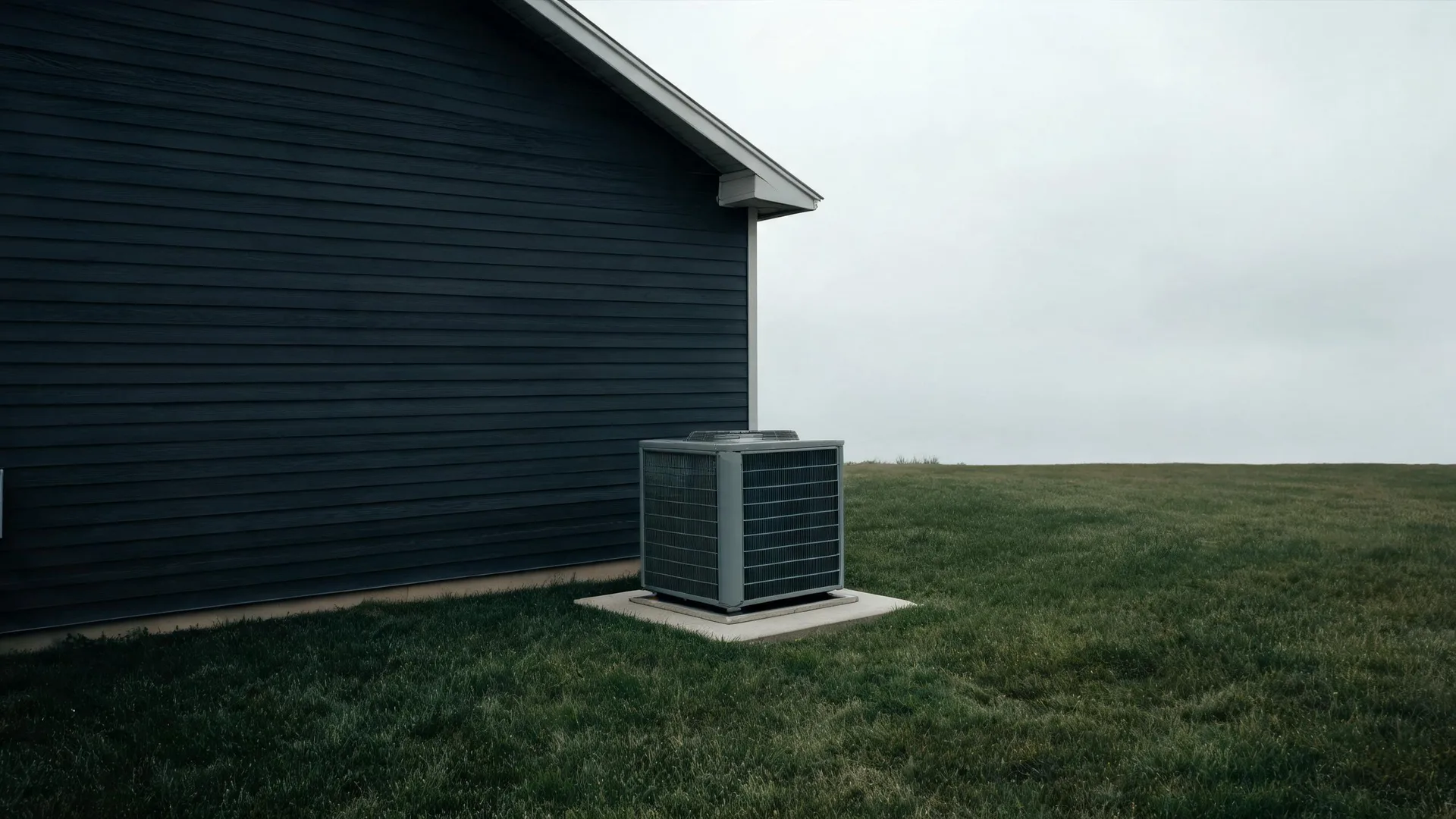

The outdoor condenser unit sits on a concrete pad outside the house, usually along a side or rear wall, and holds the compressor and condenser coil. Inside, the air handler or furnace sits in a basement, utility room, or attic and houses the evaporator coil, which is the indoor half of the system.
A refrigerant line set runs between the two units, carrying the fluid that links the outdoor and indoor sides. A thermostat mounts on an interior wall and is the control point for the whole system, telling it when to run.
The drawing beside this shows a typical layout, and a licensed contractor determines exactly how these pieces fit your particular home.
Get matched in Wayne CountyWayne County by the Numbers
85 severe weather events were recorded in Wayne County, Illinois between 2015 and 2024.
NOAA National Centers for Environmental Information, Storm Events Database, bulk CSV export, events 2015-01-01 through 2024-12-31.Half the homes in Wayne County, Illinois were built in 1974 or earlier (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesWayne County, Illinois holds 7,680 housing units (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesOwners occupy 78.4% of the occupied homes in Wayne County, Illinois (2020-2024 ACS 5-year).
U.S. Census Bureau, 2020-2024 American Community Survey 5-Year EstimatesCodes & Standards Governing Central AC Installation in Wayne County, Illinois9 sourced rules and standards
What the Installation Actually Looks Like
Split-system central air conditioners rated below 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners rated at or above 45,000 Btu/h manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Split-system central air conditioners manufactured between January 1, 2015 and December 31, 2022 had to meet 13 SEER, the metric that preceded SEER2.
Single-package central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 13.4 SEER2.
Space-constrained central air conditioners manufactured on or after January 1, 2023 must meet a federal minimum of 11.7 SEER2.
Federal efficiency standards for split-system central air conditioners and heat pumps are set on each certified combination of outdoor unit and indoor coil rather than on the outdoor unit alone.
Residential and light commercial air conditioning and heat pump systems assembled in the field, including mini-splits and unitary systems, may not be installed on or after January 1, 2025 using a refrigerant with a global warming potential above 700.
A field-assembled system whose specified components were all manufactured or imported before January 1, 2025 carries no installation compliance date under the refrigerant restrictions and may still be installed.
Licensing and Legal Requirements in Wayne County, Illinois
Illinois leaves HVAC licensing to the municipality: state law lets the corporate authorities of each city or village examine, license and regulate heating, air conditioning and refrigeration contractors, and caps the licence fee they may charge at $50 — so who licenses you depends on the town you work in.
Severe Weather Events in Wayne County
Weather puts a load on cooling equipment, and that load is not the same everywhere. How hard a central AC system has to work in Wayne County shapes what size and spec make sense for an installation here.
85 severe weather events, 2015–2024. Source: NOAA National Centers for Environmental Information, Storm Events Database.
